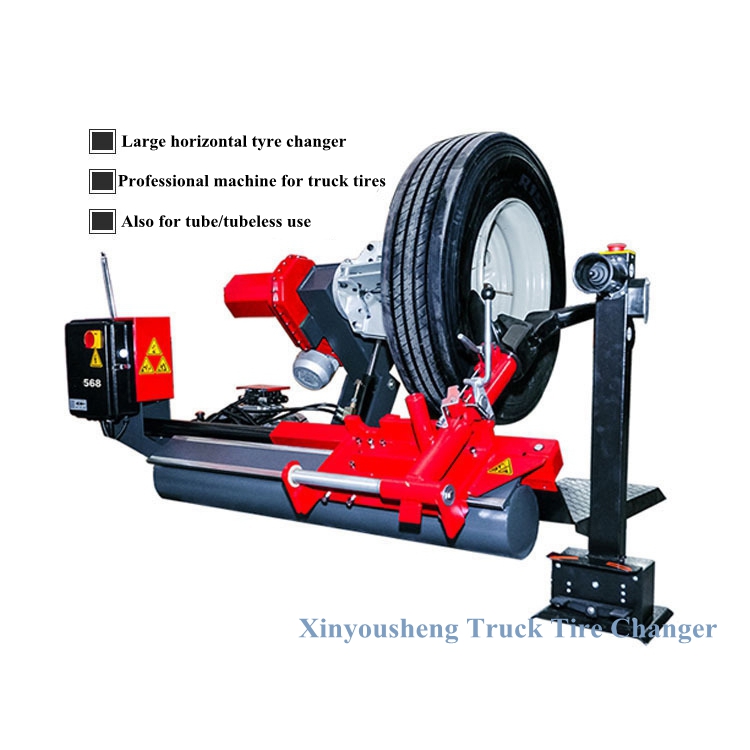

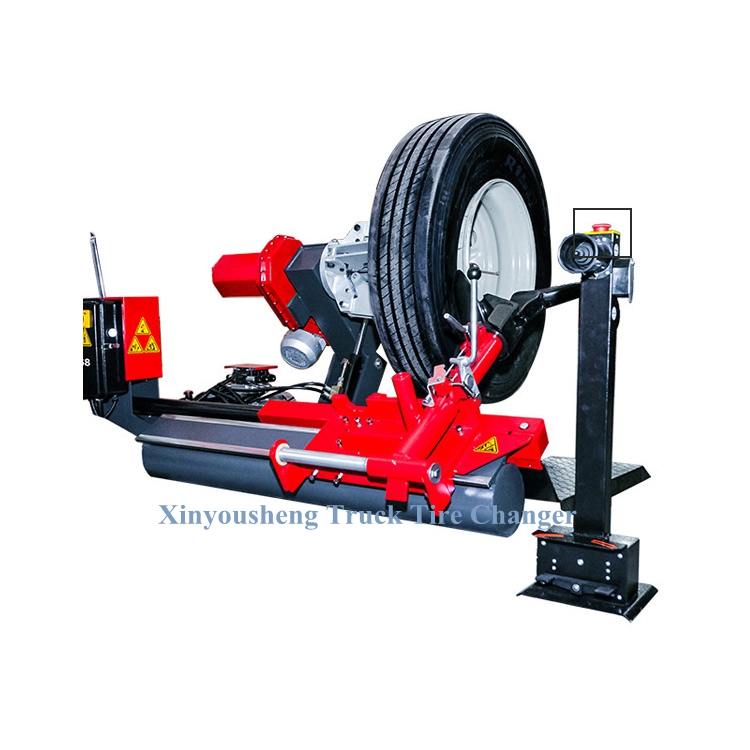

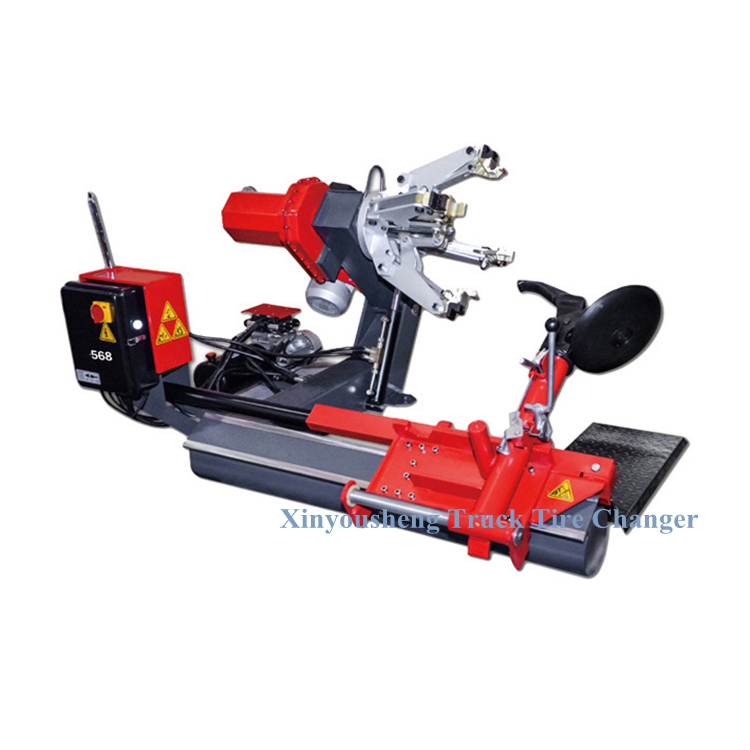

Heavy duty large horizontal truck tyre changer machine tyre changer

Heavy duty large horizontal truck tyre changer machine tyre changer

Advantages:

Large horizontal tyre changer
Professional machine for truck tires
Also for tube/tubeless use
Movable Operating Handle
Imported Pump
Less Area Occupancy
Fast Disassembly and Assembly
Hydraulic Drive

  • Heavy duty large horizontal truck tyre changer machine tyre changer

Product Description:

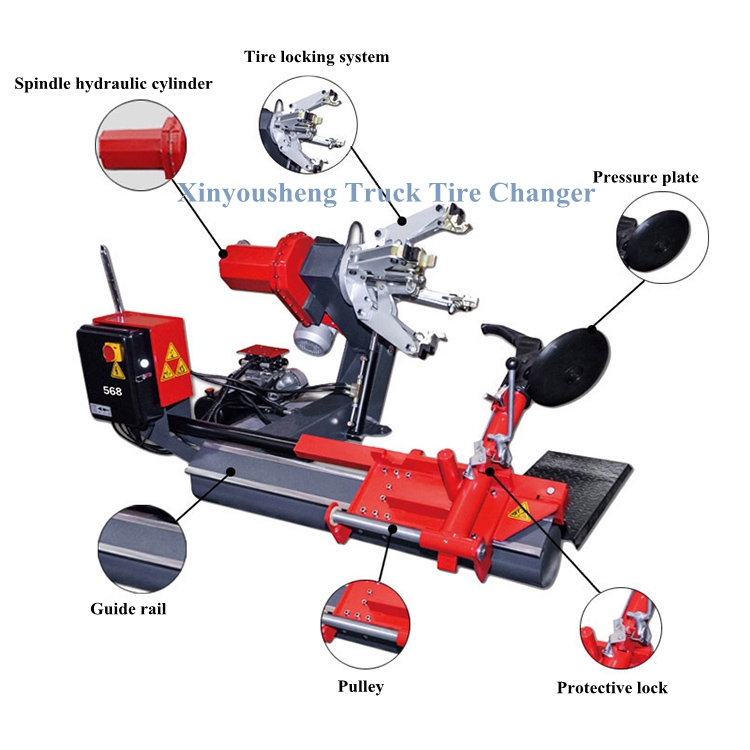

1.Portable control handle, easy to operate, emergency stop switch, easy to control
2.The tyre dismounting is more powerful and faster. The whole set of equipment is made of aluminum alloy and pure copper joints to ensure the long-term stable operation of the equipment. The guide rail is hardened and wear-resistant by chrome plating process to ensure long-term smoothness
3.It is driven by hydraulic motor drive system, which makes tyre disassembly more powerful. All aluminum turbine box, pure copper motor, high efficiency and stability
4.Rim locking system is made of aluminum alloy with high strength and corrosion resistance
5.The main shaft ensures that the four jaws lock the rim at the same time, and the rim does not slip


Specification:

1.Rim diameter: 14"-26"
2.Max.wheel weight:500kg
3.Max.wheel width: 780mm
4.Max.tyre diameter: 1600mm
5.Hydraulic pump motor: 1.5kw 380V-3Ph (220V Optional)
6.Gearbox motor: 1.8kw 380V-3Ph (220V Optional)
7.Bead breaker force: 2500kg
8.Max Torque: 6457N.m
9.Operation control voltage: 24V
10.Overall dimensions approx: 2500x2000mm
11.Power: 220/400V 50/60Hz 1P/3P Optional
