Tire Bead Breaker

Passenger,light truck,heavy truck,earthmover,tractor,and off-road tire bead breaker
  • Tire Bead Breaker

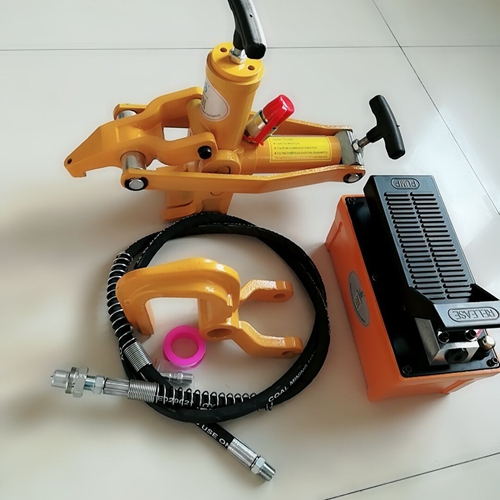

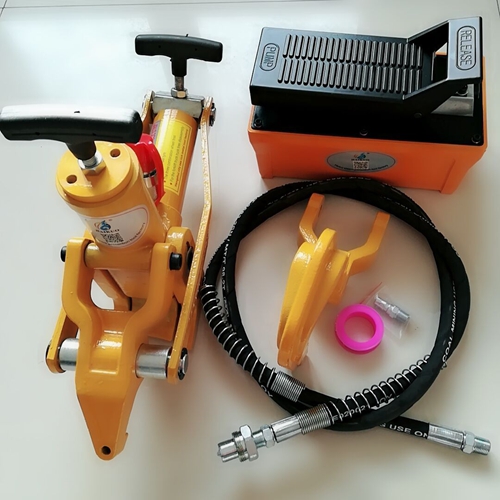

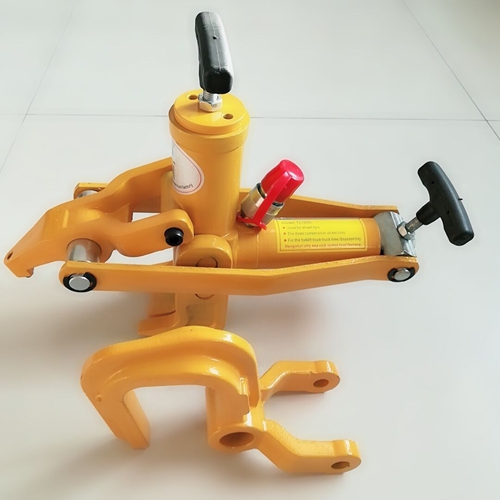

Combi Tire Bead Breaker:
Used on construction wheels up to 25"
Most popular for breaking beads on all agricultural wheels-Works on single,2 and 3 piece wheels.
Tool clamps hydraulically to the wheel and then breaks bead with 11 tons of force.
3.75" stroke length.Used with 10,000psi air/hydraulic pump

Optional 52647 Conversion Kit converts the 52001 Combi Bead Breaker to a 52437 Maxi Bead Breaker.
Includes replaceable teeth,claw and clamp.
52001 Combi Head Assembly  Ship weight 34lbs.- 16kg

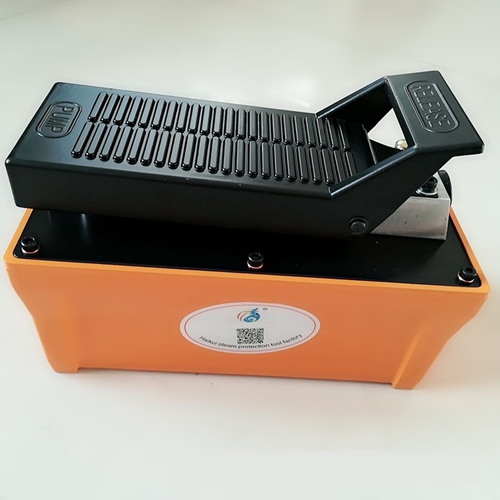

52002 Optional 3 1/2 Quart Air/Hydraulic Pump & Hose 19lbs.- 9kg
52647 Optional Bead Breaker Conversion Kit

Maxi-Bead Breaker:
For truck,agricultural & light EM/OTR tires.
Designed specifically for 23.5 x 25,26.5 x 25 and 29.5 x 25 three piece wheels.
Works on small three piece & single piece wheels.
Most economical bead breaker for new 3 piece wheels.Larger clamp and feet allow tool to easily clamp onto wheels.
Compact design allows the tool to be used on the front or back side of wheels.
52437 Maxi Bead Breaker Ship weight 38lbs.- 17kg
52002 Optional Air/Hydraulic Pump & Hose Ship weight 24lbs.- 11kg

IMT 210 HP Portable Bead Breaker:
Ideal for tractor,truck,grader,and farm implement tire bead breaking.
Smooth air hydraulic action works on all types of rims.
Breaks the inside and outside bead without removing the tire,and will not damage the bead or rim.
50959 210 HP Head Assembly  Ship weight 27lbs.- 12kg
50906 200 Optional 5Qt Air/Hyd.Pump & Hose 22lbs.-10kg
The first: Combi Tire Bead Breaker
Used on construction wheels up to 25"
Most popular for breaking beads on all agricultural wheels-Works on single,2 and 3 piece wheels.
Tool clamps hydraulically to the wheel and then breaks bead with 11 tons of force.
3.75" stroke length.Used with 10,000psi air/hydraulic pump

Optional 52647 Conversion Kit converts the 52001 Combi Bead Breaker to a 52437 Maxi Bead Breaker.
Includes replaceable teeth,claw and clamp.
52001 Combi Head Assembly  Ship weight 34lbs.- 16kg
52002 Optional 3 1/2 Quart Air/Hydraulic Pump & Hose 19lbs.- 9kg
52647 Optional Bead Breaker Conversion Kit

The second: Maxi-Bead Breaker:
For truck,agricultural & light EM/OTR tires.
Designed specifically for 23.5 x 25,26.5 x 25 and 29.5 x 25 three piece wheels.
Works on small three piece & single piece wheels.
Most economical bead breaker for new 3 piece wheels.Larger clamp and feet allow tool to easily clamp onto wheels.
Compact design allows the tool to be used on the front or back side of wheels.
52437 Maxi Bead Breaker Ship weight 38lbs.- 17kg
52002 Optional Air/Hydraulic Pump & Hose Ship weight 24lbs.- 11kg

The third: IMT 210 HP Portable Bead Breaker
Ideal for tractor,truck,grader,and farm implement tire bead breaking.
Smooth air hydraulic action works on all types of rims.
Breaks the inside and outside bead without removing the tire,and will not damage the bead or rim.
50959 210 HP Head Assembly  Ship weight 27lbs.- 12kg
50906 200 Optional 5Qt Air/Hyd.Pump & Hose 22lbs.-10kg
