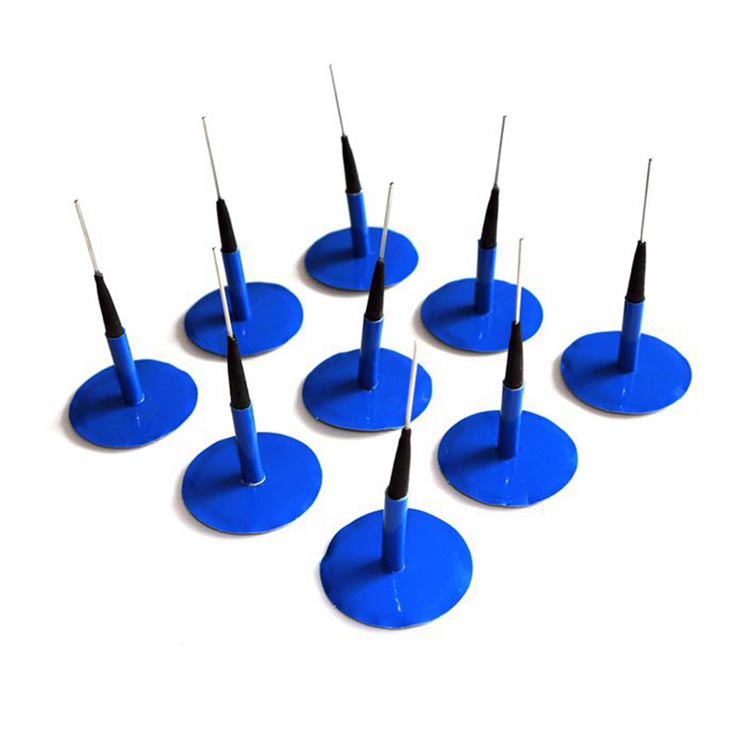

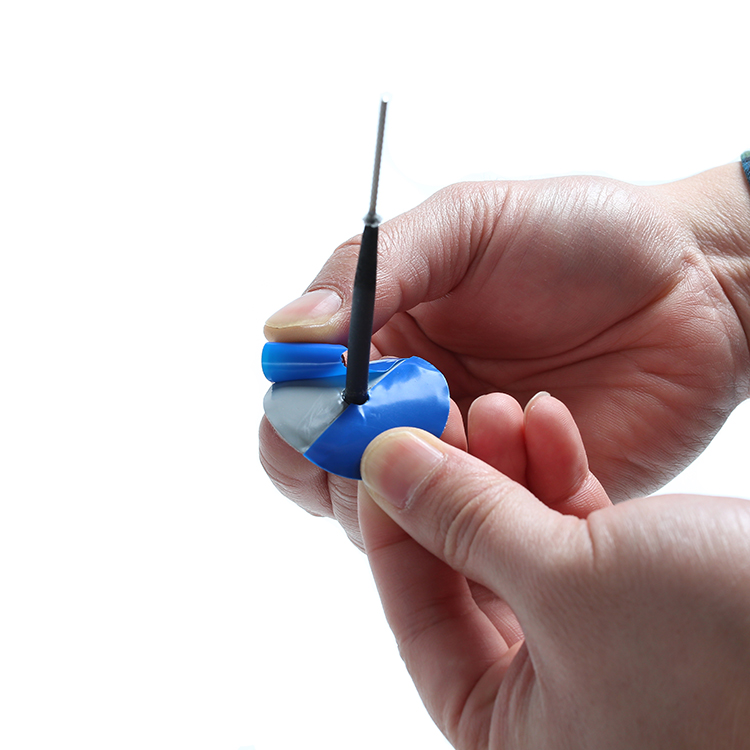

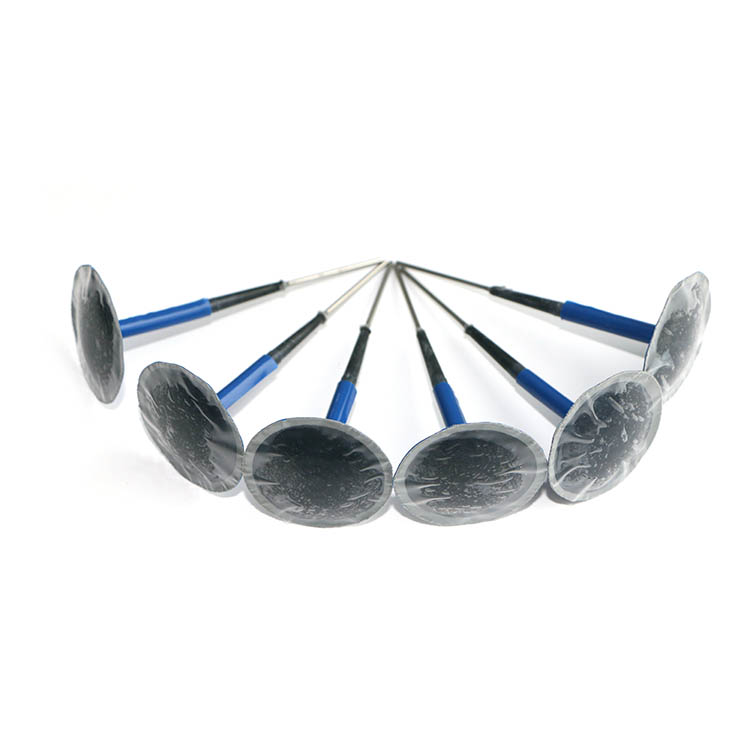

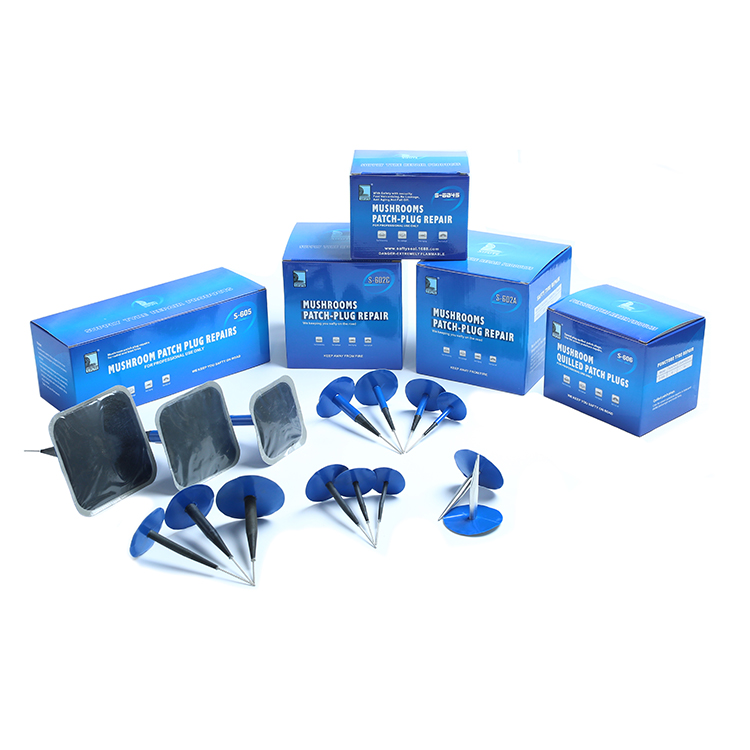

Mushroom Type Patch-Plug Tire Repair Patch

Mushroom type patch-plug tire repair patch also called mushroom style pilot wire patch plug,they are for use in the crown area on passenger,light truck,and truck tires if the angle of penetration is not more than 20°angle from the perpendicular.If the angle is greater than 20°use a separate plug stem and the appropriate repair unit.

Description:
1.made by premium rubber and threaded steel needle
2.for use in radial and bias ply tires
3.no need special insert tools
4.designed for chemical vulcanization
5.stem portion is dip coated with premium vulcanizing gum
6.round patch portion has gray vulcanizing gum with blue poly backing
7.round moulded rubber for long life
8.designed with molded-in straight pin
9.for use with automobile and light-duty trucks
10.patches plug for nail and screw hole emergency repairs
11.tire repair patches professional-grade patches for permanent repairs
12.use carbide cutter to prepare injury tire channel,install from inside,pull through,and cut off wire

Specifications:

S-601 Patch dia (35mm), Wrapped stem diameter 5mm, 24 pcs/box
S-602 Patch dia (45mm), Wrapped stem diameter 6mm, 24 pcs/box
S-602C/14   Patch dia (48mm), Wrapped stem diameter 8mm, 14 pcs/box
S-603 Patch dia (50mm), Wrapped stem diameter 9mm, 24 pcs/box
S-603C/14   Patch dia (50mm), Wrapped stem diameter 10mm, 14 pcs/box
S-602C Patch dia (48mm), Dipped stem diameter 7mm, 24 pcs/box
S-603C Patch dia (50mm), Dipped stem diameter 10mm, 24 pcs/box
S-604 Patch dia (60mm), Dipped stem diameter 10mm, 24 pcs/box
S-6045 Patch dia (40mm), Dipped stem diameter 4.5mm, 24 pcs/box
S-605 Patch dia (35mm), Dipped stem diameter 3mm, 48 pcs/box
S-602A Patch dia (45mm), Dipped stem diameter 6mm, 24 pcs/box
